HIGER SUPER 9
Irelands best selling 9M
Rear engine coach EVER

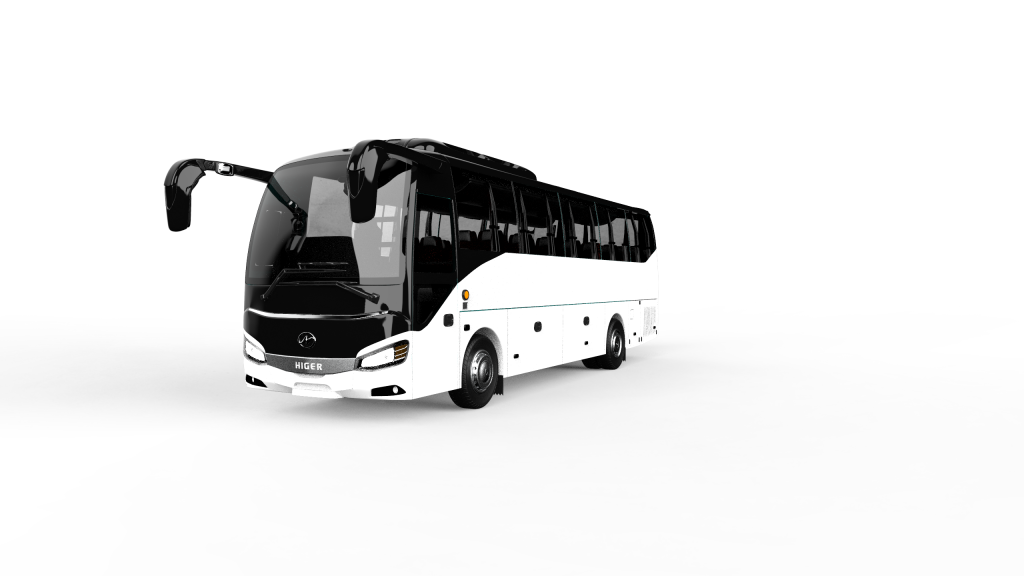

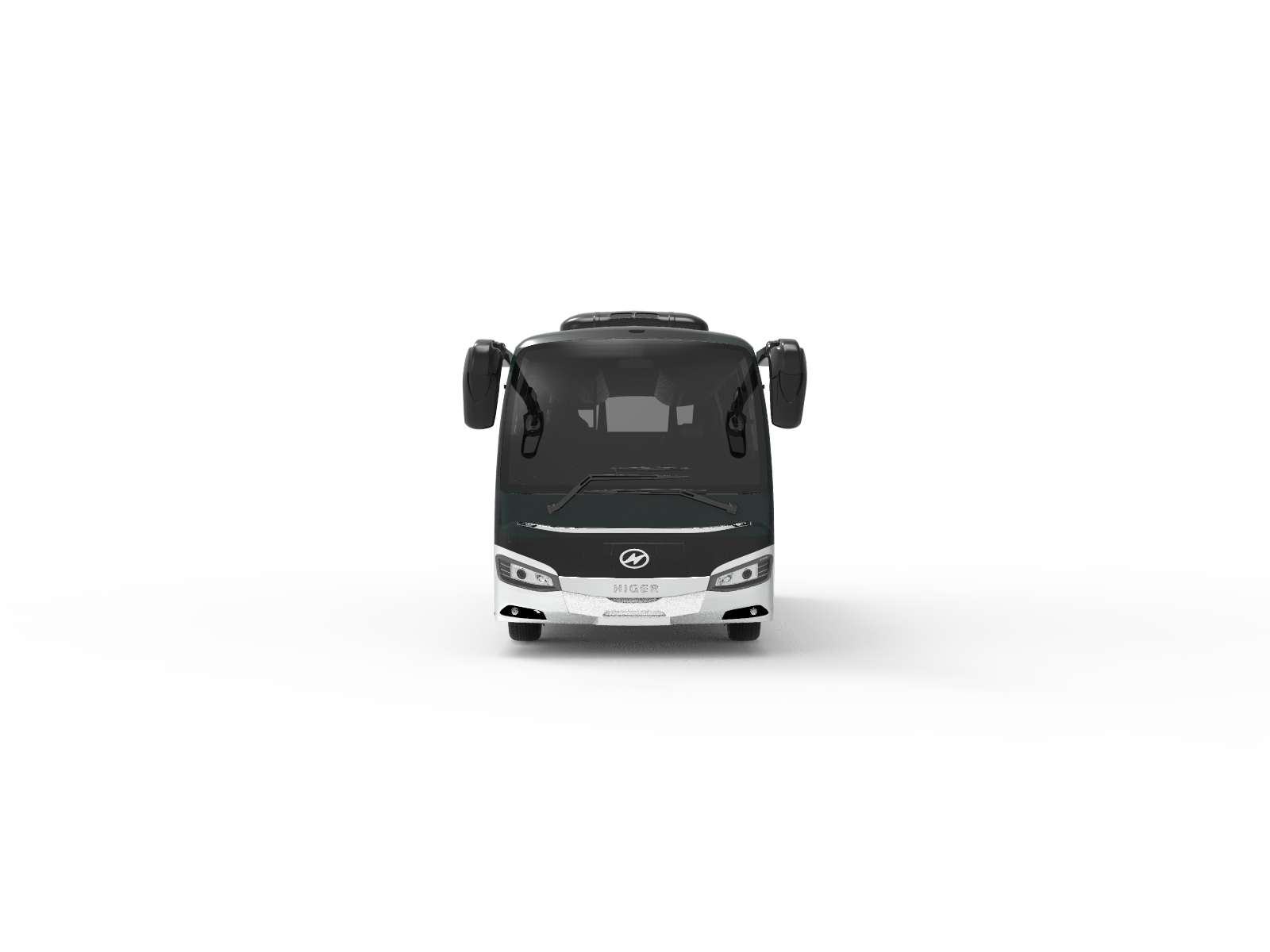

Higer Super 9 Rear engine midicoach. A popular sight on Irish roads.
Higer Super 9 XL Midicoach
39-41 SEATED PASSENGER
9M COACH
FTP EURO6
6.7M LUGGAGE

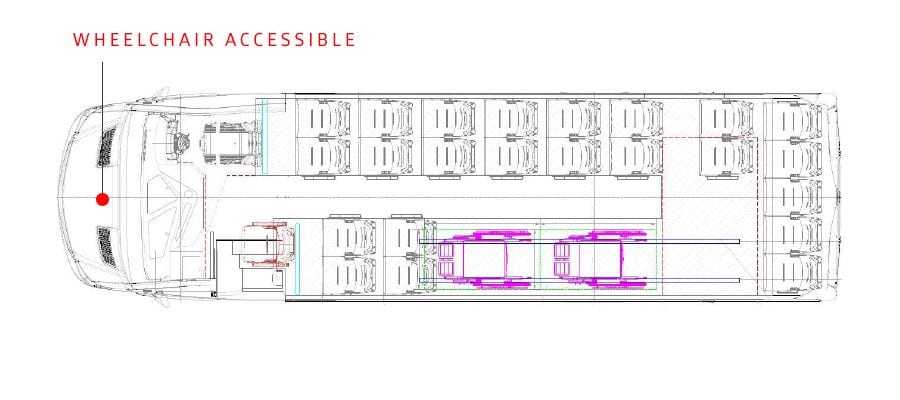

WHEELCHAIR
ACCESSABLE
PSVAR OPTIONS
ISB6.7 CUMMINS ENGINE
300 BHP
Vehicle Category & Class
Engine
Cummins ISB6.7E6300bhp “Made in Darlington United Kingdom”
4 Stage Intarder
Fitted with Economy and power button selection system
A/C:
Spheros A/C upgraded defroster with cooling and heating function, ventilation to driver and guide;
Full Spheros one touch climate control system. Controller head “Made in Germany”
Heater:
Spheros integrated heating system, with convection heating both sides of saloon
Seats
Vega 440 Super Luxury Seats 2 USB Charging Sockets on Each Passenger ISRI Air Suspension Driver Seat with Twin Arm Rests Alloy Foot Rest Rear Tray and Magazine Nets (Optional)
Audiovosual
1*19’ manual LCD color display monitor
Lighting
Full length rack strip lighting with Blue & White led;
led illuminated entrance steps & aisle illuminated led integrated ambient led system
Rear View
Electrically adjusted & heated rear view mirrors. Drivers side low entry mirror with heated mirror
Door
Front pneumatic out-swing door, rear continental door/emergency exit with remote control
Window
Double glazed – with black privacy tint and UV protection
1 Webasto roof emergency exit ,
Side window emergency exits x3
Large Panoramic windscreen
Floor
Non slip Gerfloor; Train grade wooden effect flooring; Centre aisle ribbed carpet over mats supplied
Suspension
Air Suspension fitted with 6 Firstone Airbags ” Made in the USA”
2 Front Airbags
4 Rear Airbags
Front Independent Suspension
Programmable ECAS
Front & Rear Brakes
Front and Rear Disc brakes Automatic slack adjuster Wabco AEBS and ESC

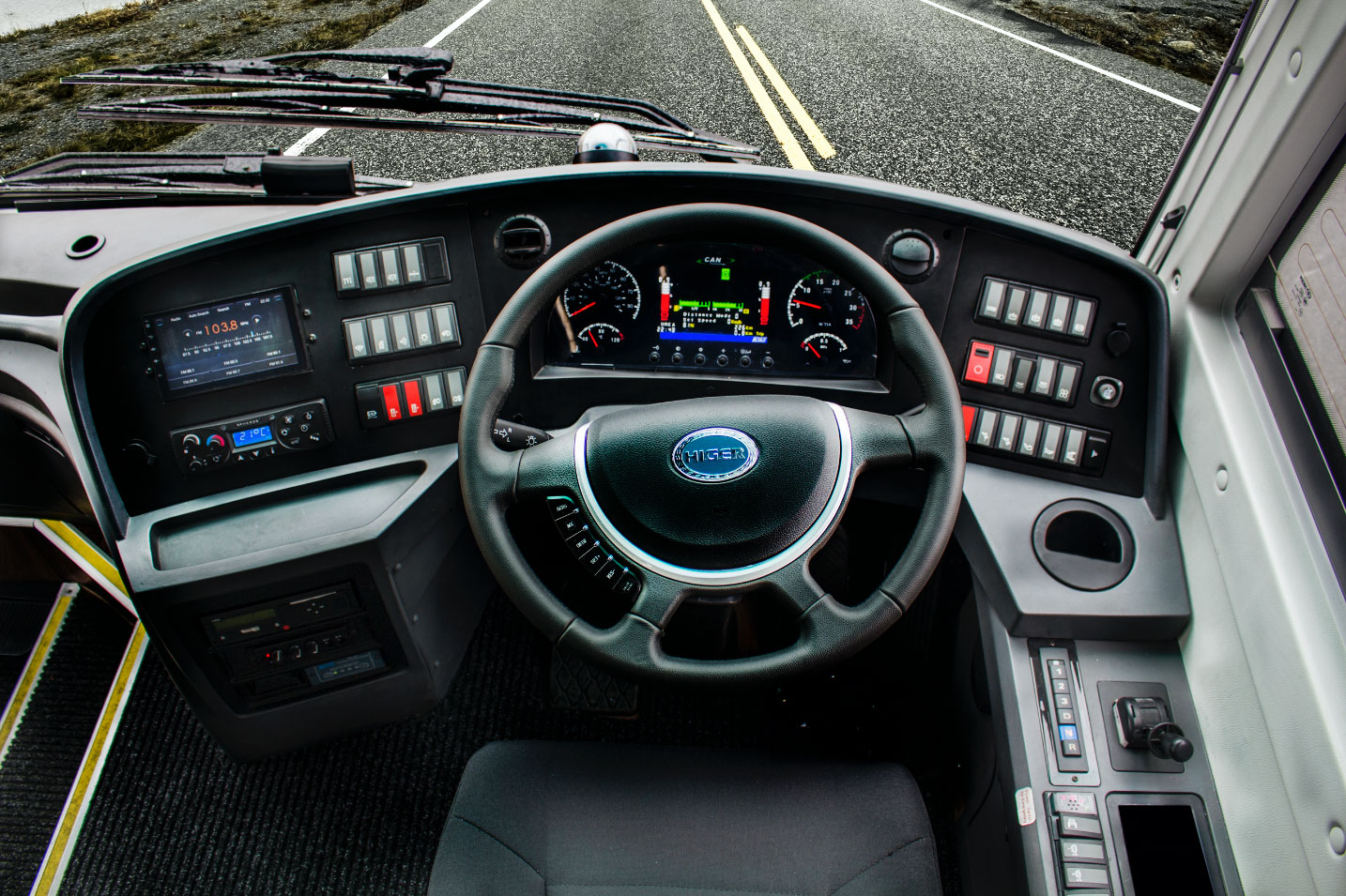

Steering Wheel
ZF power steering
Gross vehicle weight (kg)
9860 kg

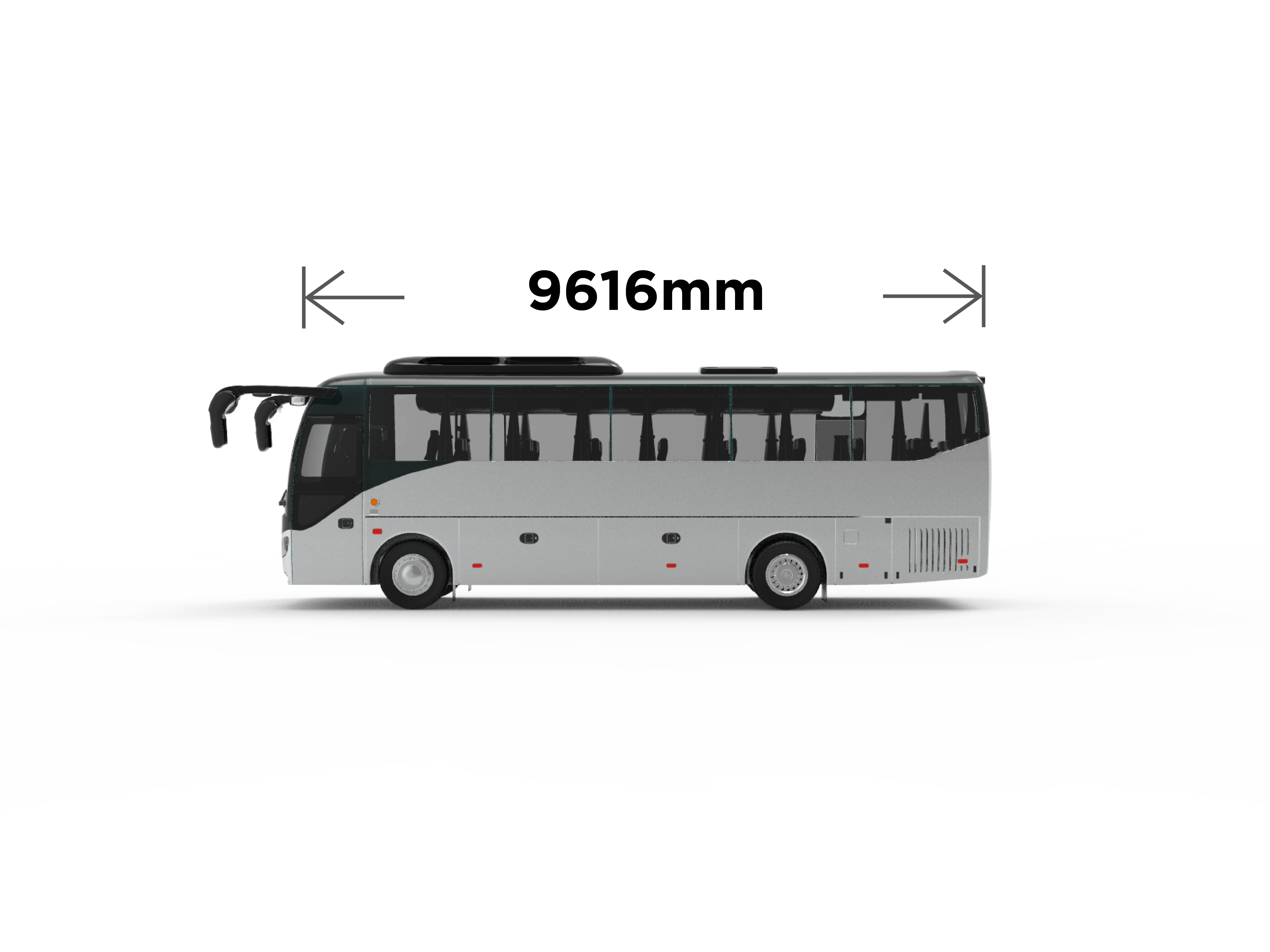

Overall Length (mm)
9616
Overall Width (mm)
2470
Overall Height (mm)
3376
275/70R22.5 Michelin coach tyres “Made in Spain” on 10 stud rims

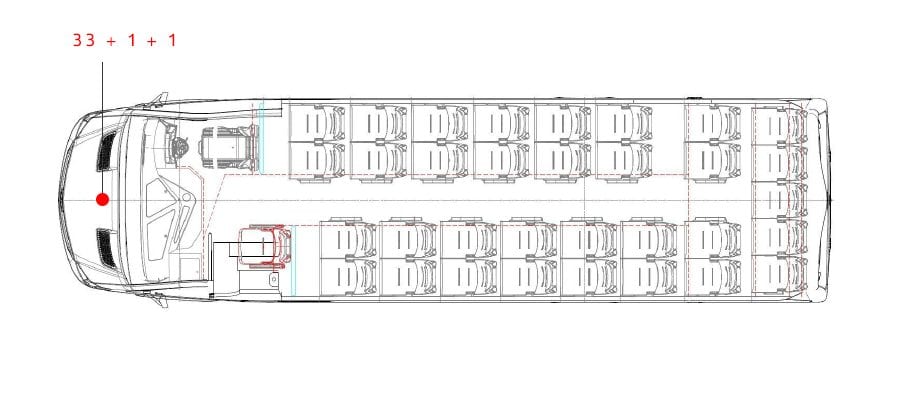

Passenger Capacity
39 +2 option
Seats
41 +2
*** Passenger capacity depends on selected optional features & wheelchair area utilization. Wheelchair is valid only when foldable seats are not being used.
Design.
When the Super 9 was designed, the basic specification of the vehicle was predetermined by what the bus and coach industry told us they wanted in a midi-sized coach. We then insisted the vehicle components used in the construction of the coach would be past-sourced from blue chip suppliers. Many of the parts used, are from internationally renowned suppliers with dedicated supply routes in Ireland and the UK, making parts supply simple – not just today but also into the future. When you see products like a Cummins Engine, ZF Gearbox, Firestone airbags, Waco braking system and electronics, Spheros AC system, Isringhausen driver’s seat, Michelin tyres and many more renowned brands, then you begin to understand we have built the Super 9 to be a market-leader not a follower!
Equipment.
Comfort begins with the visual perception of the interior of a coach, so all Super 9 coaches have been fitted with a number of mood light settings changing from soft blue to brilliant white, at the flick of a switch. Blue LED overhead marker lights provide passengers with a point of reference when it’s dark. This is due to the indirect lighting concept that creates a pleasant sense of space activated by the auto headlights-on function. Natural light is filtered by the UV protection system, fitted to the tinted glass, helping to ensure ensuring that all available daylight is used to brighten up the passenger compartment. There are two separately operable reading lamps above each seat for passenger convenience.

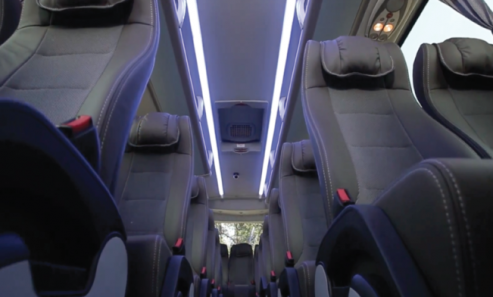

LIGHTING
Comfort begins with the visual perception of the interior of a coach, so all Super 9 coaches have been fitted with a number of mood light settings changing from soft blue to brilliant white, at the flick of a switch. Blue LED overhead marker lights provide passengers with a point of reference when it’s dark. This is due to the indirect lighting concept that creates a pleasant sense of space activated by the auto headlights-on function. Natural light is filtered by the UV protection system, fitted to the tinted glass, helping to ensure ensuring that all available daylight is used to brighten up the passenger compartment. There are two separately operable reading lamps above each seat for passenger convenience. Additionally, indirect LED lighting is fitted to the aisle and step areas, improving passenger visibility and safety, for entering and alighting the Super 9 day or night.
SEATING
Seating comfort is a must particularly over long distances. For the Super 9 we have chosen high-quality Vega seats as standard. There is a choice of three colour options each incorporated into the appropriate colour matched interior. All seats are fitted with side-out operation, reclining, adjustable armrest, twin USB charging points, aluminium footrests, retractable table with cup holder, coat hook and magazine. Removable “Vega Air-Pillow™ ”colour co-ordinated headrests are also fitted for maximum comfort.

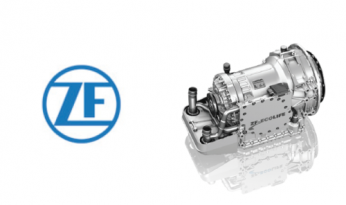

ZF ECOLIFE
This is where the EcoLife Coach gearbox demonstrates it’s advantages over manual and automated transmissions – with 25 percent more torque available and designed for a much longer service life. The EcoLife challenges the roads and slopes. Up to 2,300 newton meters of torque and 6 speeds ensure high average speeds at low engine revolutions, thanks to a higher constant axle ratio. That means the engine can always supply full torque, without disengaging and engaging the clutch, and without losing speed during gear-shifts. The Super 9 XL Euro6 C is fitted with the ZF Super economy and power button – a first for a MIDI coach.
INDEPENDENT FRONT SUSPENSION
The Super 9 is fitted with independent front suspension and precisely-sized and tuned stabilizer bars . This design, engineered to complement the ZF power steering system, provides exceptional directional stability, condence-inspiring road feel, and first class precision road handling.
ZF STEERING & SACHS SHOCKS
The Super 9 comes fitted with the renowned ZF Steering system. The ZF high-performance steering system is designed to be long lasting and hard wearing, which is trusted by many of the top global vehicle manufacturers for over the past 100 years. To complement the steering system, ZF Sachs shocks have also been fitted to the Super 9.

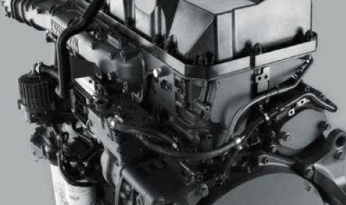

Cummins ISB 6.7 Euro 6 engine
41 Seater Standard spec
Finished in our standard trim
Beautiful interior
Black gloss roof and the new optional front black trim....
ZF Ecolife fully automatic Gearbox mated to a Cummins ISB 6.7 Euro 6 engine made in the UK
Michelin 22.5 tyres Road Friendly suspension
Aluminium Doors and wheel arches
Double-glazing Climate control
AC system Parallel opening luggage doors
Full Engine bay fire suppression system
Programmable ECAS system
ELS (easy loading system for the driver to help load the luggage)
8 Camera recording system
USB charging
Side out Operation seats
Full Recliners
Removable Head rests
Wide choice of seat designs to choose from
Wabco Brake system
ZF Steering and shocks
Firestone Airbags
Front destination system And much more all standard Super quiet bus with a lot of space and headroom.
7 meters of underfloor luggage space.
