STEED EV NARROW BUS
26 SEATED PASSENGERs
9M COACH
zero emmissions
CATL BATTERY
WHEELCHAIR
ACCESSABLE
PRESTOLITE MOTOR 350KW
300KM Range

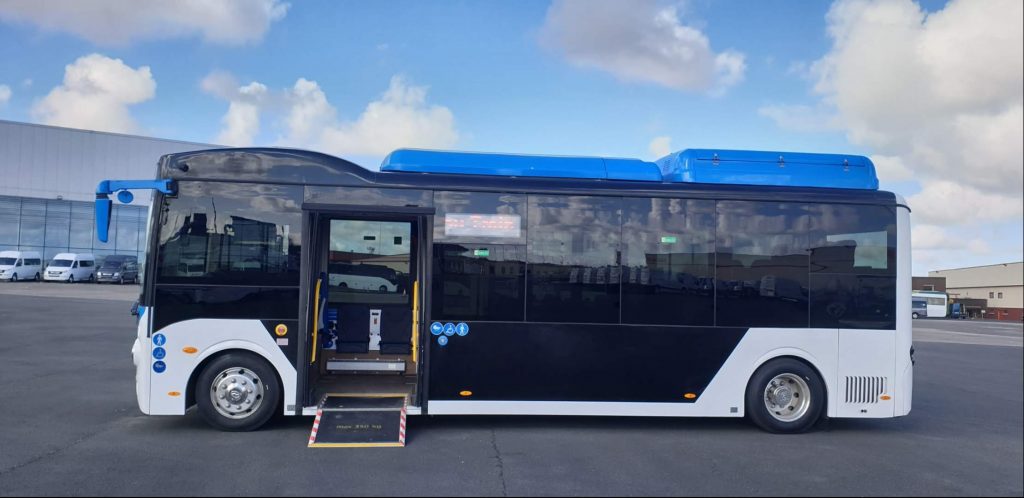

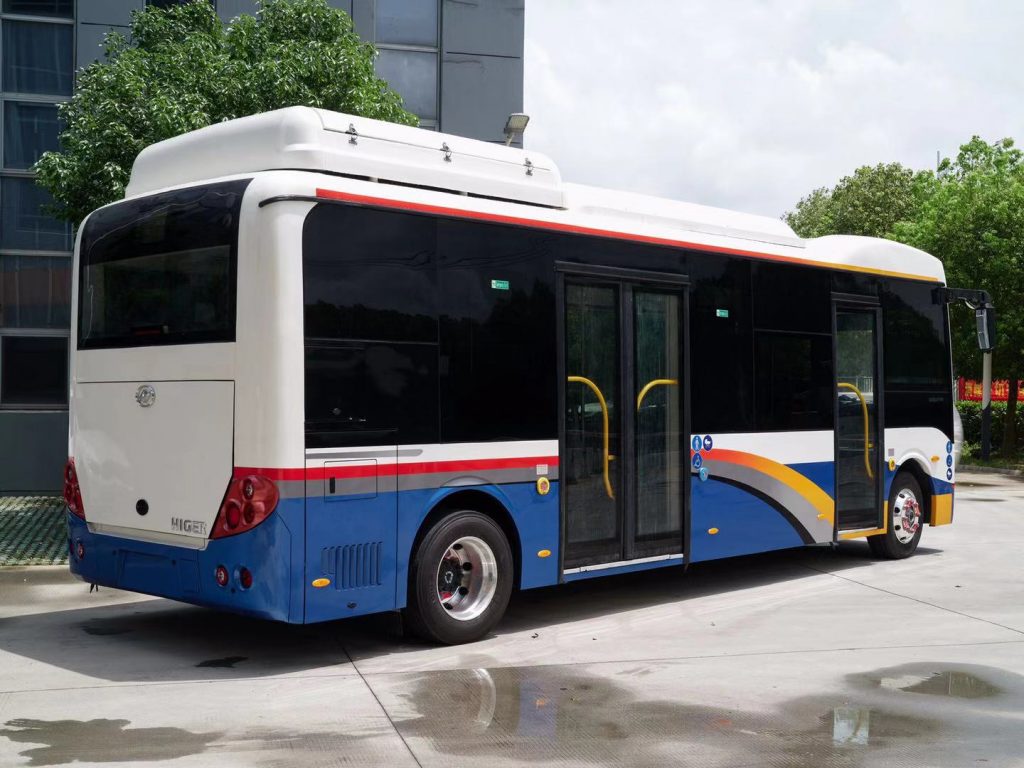

Higer Steed fully electricClass 1 traffic buster narrow body Citybus
Options: Single and double door models available
Motor
Single drive Prestolite MD901900N
High voltage battery (Type – Capacity)
CATL Lithium Ion Batteries 174Kw
Battery Power
- 175KWH charging time from 20% soc
- 210KWH charging time from 20% soc
Charger Type
CCS2 DC fast-charging
Charging time
Full charge in less than 2 hours
* Range may differ depending on various factors, in particular:individual driving style, route characteristics, outside temperature, heating / air conditioning, seated and standing passenger weight.
Training is supplied with every EV sold by Harris. And is conducted in the Harris Training Academy on the Naas road in Dublin.
Body Type
Suspension
Advanced 4 airbag motive suspension system
Front Axle
Maintenance-free
Rear Axle
Maintenance-free
Front & Rear Brakes
4 wheel disc brakes, Wabco EBS, ABS and ASR
Steering Wheel
Bosch 8095
Gross vehicle weight (kg)
8.500kg
Overall Length (mm)
8522mm
Overall Width (mm)
2370mm
Overall Height (mm)
3215mm
Front Overhang (mm)
1181mm
Wheelbase (mm)
5800mm
Approaching / Departure Angles (°)
18/13
245/70R19.5 energy saving Michelin tyres J17.5″ Double
Alloy rims
Passenger Capacity
48
*** Passenger capacity depends on selected optional features & wheelchair area utilization. Wheelchair is valid only when foldable seats are not being used.
Steed Range power distance use cases.
70%
Battery Used
121.8KW
KWH Used
€20.71
Cost of Journey
€0.10
Price per KWH
€0.80
Price per passenger
70%
Battery Used
121.8KW
KWH Used
€20.71
Cost of Journey
€0.10
Price per KWH
€0.80
Price per passenger
70%
Battery Used
121.8KW
KWH Used
€20.71
Cost of Journey
€0.10
Price per KWH
€0.80
Price per passenger
70%
Battery Used
121.8KW
KWH Used
€20.71
Cost of Journey
€0.10
Price per KWH
€0.80
Price per passenger
Higer steed. Bringing more empty carparks
26 seatbelted seats
22 standing positions
Wheelchair accessable
Front integrated passenger storage area
Extra wide aisles and entrance
Saloon air conditioning
Internal and external camera recording system
LED destination Boards Front/side/Rear
Onboard audio visiual display panels
Removable overhead storage racks
Ergonomically designed handrails
USB Charging
Wi FI READY
Ergonomic drivers cockpitwith easy touch controls and a Rake a height adjustable dashboard
ZERO EMMISSIONS
enviromentally friendly
So why is the STEED such a unique vehicle
So why is the STEED such a unique EV vehicle ?
The steed was designed to be able to go where other buses couldnt, the narrow body design and wheel placements allos the steed to navigate and manouver in tight spaces. In fact the STEED can go where any Ambulance can. The steed is at home on Narrow country roads as well as multilane traffic. Wath our STEED on tour video to see just how versatile this 8.5/9 Meter bus is
Metro ready Narrow Body Bus
Offset your carbon tax
Did you know that you can offset your carbon tax on a purchase of a STEED, We will gladly sit down with you and discuss your options.
Versatile and robust
The steed has proven to be a valuable asset for many a organisation with the STEED being adopted by national parks and city routes alike.
See how the STEED can integrate into your fleet
STEED is kind to the environment
